TG-5150RM Multi-Format HD/SD-SDI Pattern Generator
16 Channel Embedded AES Audio With Voice Channel ID
- Rack Mounted -
This is a full featured, multi-pattern, multi-format, SMPTE 292M HD/SD-SDI generator with individual 16-channel voice ID’s and tones. The embedded voice repeats the channel ID every 16 seconds, leaving no doubts or confusion about the audio channel you’re monitoring. Plus, between the voice ID’s there are standard level 1kHz audio tone for the “right” and 440Hz audio tone for the “left” within each group. The inclusion of standard level tones permit very accurate system leveling. Both the US -20dBFS and the European -18dBFS standard levels are supported.
The pattern lineup was specifically chosen to expose system weakness and limitations. For example, a moving zoneplate is used to qualify video compression and scaling. The pathological pattern is used to stress the PLL’s in the signal path. There is even the traveling wizard that moves smoothly about the screen to reveal dropped or repeated frames. Then there are the classic patterns: SMPTE RP 219 color bars, 75% full-field color bars, projector alignment and convergence grid, and RGB color fields plus black and white. A user selectable circle overlay is also included to aid in checking for proper display aspect.

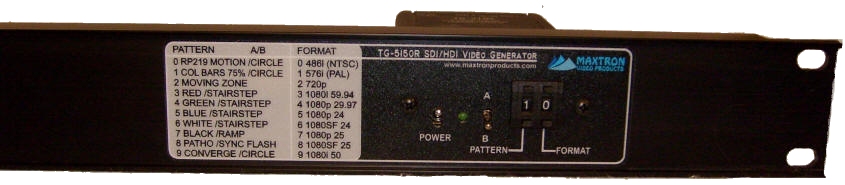

The rack mounted TG-5150 fits in a 1U rack space. It is housed in a mechanically strong, extruded aluminum box. Pattern and format selects use push-wheels that are not prone to being accidentally changed and always indicate the exact status of the generator.
Contact: Vancura Innovations
Shop On-line With PayPal
Literature sheet (PDF) TG-5150R HD/SD SDI TV Pattern Generator W/Voice ID
