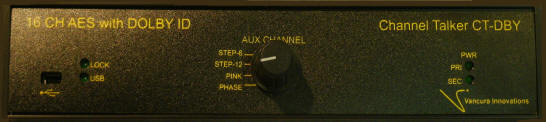

Channel Talker CT-DBY

By Vancura Innovations

 Dual 8 AES DOLBY 5.1 & 7.1 format Tone Generator
With Voice-over ID

- Dual Dolby5.1 & 7.1 AES/EBU digital outputs

- AUX channel with 4 specialty tones

- DAR/House Black input: Locks to house reference (Most analog video SD & HD formats)

- DAR output reference

 - Perfect for setting up and testing digital Dolby® 7.1 and 5.1 systems




- Professional Digital Audio Test Equipment –

The CTD-DBY makes it possible for one person to setup or verify the DOLBY® AES/EBU digital audio channels in his facility – easily, quickly, and accurately. The unit produces a hands-free audible sequential voice ID for each channel, eliminating the need for external generators or extra personnel to switch between sources. In addition to the voice ID’s, the CTD-DBY includes AUX channel tones allowing both narrow and wide band frequency response testing, and for spectrum analyzers, a pink noise generator is included.  Finally, there is a modified sine wave output that can be monitored at the audio system output to verify that there has not been an audio phase reversal in the system. Audio phasing or polarity can be verified either visually (oscilloscope or hand-held video scope) or with an approved polarity detector (CL-1 Channel Listener).

Channel Talker Specifications:

Dual DOLBY Tone Channel sets: Digitally generated, exactly -20dBFS (or -18dBFS), 100 Hz on the LFE channel, and 1000 Hz tone on the other channels. Sequential voice markers on all channels (8 digital streams), 19-Bit resolution, and 20-bit compatible. Outputs are AES/EBU compatible (75 Ohm BNC). All matching tones are in phase.

AUX Channel: Digital stream output with 3 selectable tones (4 tones on -C model includes Step-6 ), Step-12, Pink Noise, and Polarity. Identical information is on both channels. Output is AES/EBU compatible (75 Ohm BNC).

Step-6: Six stepped tones: 125, 250, 500, 1000, 2000, and 4000Hz. Duration 500ms each continuously repeating. Output level exactly -20 dBFS (or -18dBFS) with 19-bit resolution and 20-bit compatible.

Step-12: Twelve stepped tones: 25, 50, 75, 125, 250, 500, 1000, 2000, 4000, 8000, 12000, and 15000Hz. Duration 1000ms (or 500ms) each continuously repeating. Output level is exactly  -20 dBFS with 19-bit resolution and 20-bit compatible.

PINK Noise: Pink noise wave file. Output level is -20 dBFS (or -18dBFS) average, 16-bit resolution, and 20-bit compatible. Repeat rate 2.73sec.

Polarity: 600Hz, exactly -20dBFS (or -18dBFS), digitally generated tone modified so that the negative half of every fourth sine wave is truncated to -50% for identification.

DAR Output: One Digital Audio Reference output (DAR). Audio output Left and Right = 0.00 volts (minus infinity db – dead silence). Class 1 reference signal.

DAR/Color Black Input: Locks to external DAR reference 48Khz data stream, or standard house reference Color Black analog video. Supports most analog video formats including NTSC-29.9, PAL-25, 1080i (30, 29.9, 25, 24, 23.9) 1080P(60, 59,9, 25, 24, 23.9), & 720P (60, 50) frames/sec.

Channel ID: Sequential voice channel ID overlay on all channels for ease of identification. Natural voice wav file. Unit is pre-programmed with generic sequencing 1.0 sec phrases (“Front Left”, “Front Right”, "Center", "L F E", "Left Surround", "Right Surround", "Left Total",  "Right Total", "Left", "Right", "Clean Left", "Clean Right", "Channel 1", "Ch 2", "Ch 3", & "Ch 4").

Station ID: Voice station/unit ID overlay on all 16 channels. Supports up to 16 second message. Default: No message stored.

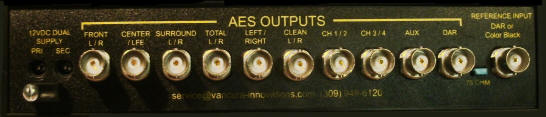

AES/EBU Stereo digital outputs: All digital serial outputs are greater than 1.0VP-P into 75 Ohms. BNC connectors.

Input Voltage: 8VDC to 14VDC (12VDC nominal). Connector 2.1mm X 5.5mm X 11mm (inside x outside x Length). Unit is compatible with automobile battery voltage (13.2VDC). Dual power input for redundant power operation.

Input Current: 100ma Maximum.

Input Power Supply: Two 110-220VAC to 9VDC 660ma green converters.

Temperature: 0 C to 50 C (32 F to 125 F) non-condensing.

Warranty: 90 days to cover normal operation, defects in materials, and workmanship.

Size W X D X H: 207mm x 178mm x 43mm (8.15in x 7.0in x 1.7in). 1U high 1/2 Rack compatible.

Voice ID Phrase Download Software (Optional): Channel Talker Voice overlay channel ID and Station ID  are wave files. The Channel ID file can be custom programmed, providing the overlay information that can fit in 1.0 sec segments. The Station ID file can be any message from 0 to 16 seconds. Voice ID information is downloaded to non-volatile FLASH memory. Both messages are stored at 8K samples/sec.

Voice ID Download Software Specifications: Software requires Windows XP,2000 or later 333 MHZ processor, 256MB RAM, 25M Bytes of Disk space, 800x600 monitor or larger, and mouse.

Model-A & B: 16 Channels with prerecorded voice overlay, 4 AUX tones. Channels 1-16 are 1000Hz with prerecorded voice overlay. Blank Station/unit ID.

Model-C:  All features above with 4 AUX tones (Step-6 step-12, Pink, polarity), and two additional front panel rotary switches.
1) Channel Tone SW: Selectable tones on channels: 1000Hz, 500Hz, Aux Tones, or Levels: freq= 10 KHz @ (MUTE, -20, -17, -14, -11, -8, & -5 DBFS 2-seconds each).
2) MODE SW: Both Tones & ID, Tones Only, ID only, MUTE.
All channels have prerecorded  voice ID overlay.

Custom Model-x: Custom tones and configurations are possible. Please enquire at
Options: Optional Front Panel power Switch (Factory installation only).

Each Model includes: CT-DBY, two 9VDC power supplies.
Rack Kit includes: Half Rack panel, mounting handles, and assembly hardware.

                         (Dealer inquiries welcome)

Shop On-line With PayPal
Item Name:

Item No.


Channel Talker DOLBY (-20dBFS) CT-DBY-A $1995.00
Channel Talker DOLBY (-18dBFS) CT-DBY-B $1995.00
Optional Factory Programmed Custom Message CTD16-MSG $150.00
USB Cable A to mini 5-pin (2M) USB to A-mini 5pin $9.95
Optional front panel power switch (factory installed only) CTD16 OPT-PWRSW $19.95
Rack Mounting Hardware RMH-1U $25.00
Rack Mounting Kit: 1/2 rack panel with Rack Mounting Hardware HRMK-1U $95.00

Actual shipping and handling charges are based on method of shipping.

Download User Manual: CTD-16_User_Guide. (PDF 132KB)

Download USB Drivers: (603.5KB) Driver is available from

Download wave saver program: CT_WAVE_saver_142E.msi  (11.3MB). This includes sample voice files at different levels. This program is required to save wav files to the the Channel Talker,

Download Side-by-side rack mount assembly guide: CT_side_by_side_assembly.pdf (PDF 51KB)

Note: Specifications subject to change without notice. The information in this document is believed to be accurate. Vancura Innovations assumes no responsibility for possible printing errors and omissions.
