Channel Talker CTD-16

By Vancura Innovations

 16 AES Audio channel Tone Generator
With Voice-over ID

- Sixteen AES/EBU digital channels

- AUX channel with 4 specialty tones

- DAR/House Black input: Locks to house reference

- DAR output reference

 - Perfect for setting up and testing 16 channel studios and digital Dolby® 5.1 (click here to CT-DBY)

-3 Models to choose from.




- Professional Digital Audio Test Equipment –

The CTD-16 makes it possible for one person to setup or verify all the AES/EBU digital audio channels in his facility – easily, quickly, and accurately. The unit produces a hands-free audible sequential voice ID for each channel, eliminating the need for external generators or extra personnel to switch between sources. In addition to the voice ID’s, the CTD-16 includes AUX channel tones allowing both narrow and wide band frequency response testing, and for spectrum analyzers, a pink noise generator is included.  Finally, there is a modified sine wave output that can be monitored at the audio system output to verify that there has not been an audio phase reversal in the system. Audio phasing or polarity can be verified either visually (oscilloscope or hand-held video scope) or with an approved polarity detector (CL-1 Channel Listener).

Channel Talker Specifications:

16 Tone Channels: Digitally generated, exactly -20dBFS (or -18dBFS), 1000 Hz tone with sequential voice markers on all channels (8 digital streams), 19-Bit resolution, and 20-bit compatible. Outputs are AES/EBU compatible (75 Ohm BNC). All matching tones are in phase.

AUX Channel: Digital stream output with 3 selectable tones (4 tones on -C model includes Step-6 ), Step-12, Pink Noise, and Polarity. Identical information is on both channels. Output is AES/EBU compatible (75 Ohm BNC).

Step-6: Six stepped tones: 125, 250, 500, 1000, 2000, and 4000Hz. Duration 500ms each continuously repeating. Output level exactly -20 dBFS with 19-bit resolution and 20-bit compatible.

Step-12: Twelve stepped tones: 25, 50, 75, 125, 250, 500, 1000, 2000, 4000, 8000, 12000, and 15000Hz. Duration 500ms (or 1-sec) each continuously repeating. Output level is exactly  -20 dBFS with 19-bit resolution and 20-bit compatible.

PINK Noise: Pink noise wave file. Output level is -20 dBFS (or -18dBFS) average, 16-bit resolution, and 20-bit compatible. Repeat rate 2.73sec.

Polarity: 600Hz, exactly -20dBFS (or -18dBFS), digitally generated tone modified so that the negative half of every fourth sine wave is truncated to -50% for identification.

DAR Output: One Digital Audio Reference output (DAR). Audio output Left and Right = 0.00 volts (minus infinity db – dead silence). Class 1 reference signal.

DAR/Color Black Input: Locks to external DAR reference 48Khz data stream, or standard house reference Color Black analog video.

Channel ID: Sequential voice channel ID overlay on all 16 channels for ease of identification. Natural voice wav file. Unit is pre-programmed with generic sequencing 1/2 sec phrases (“One”, “Two”, "Three", etc.). Internally selectable to 1-sec phrases.

Station ID: Voice station/unit ID overlay on all 16 channels. Supports up to 16 second message. Default: No message stored.

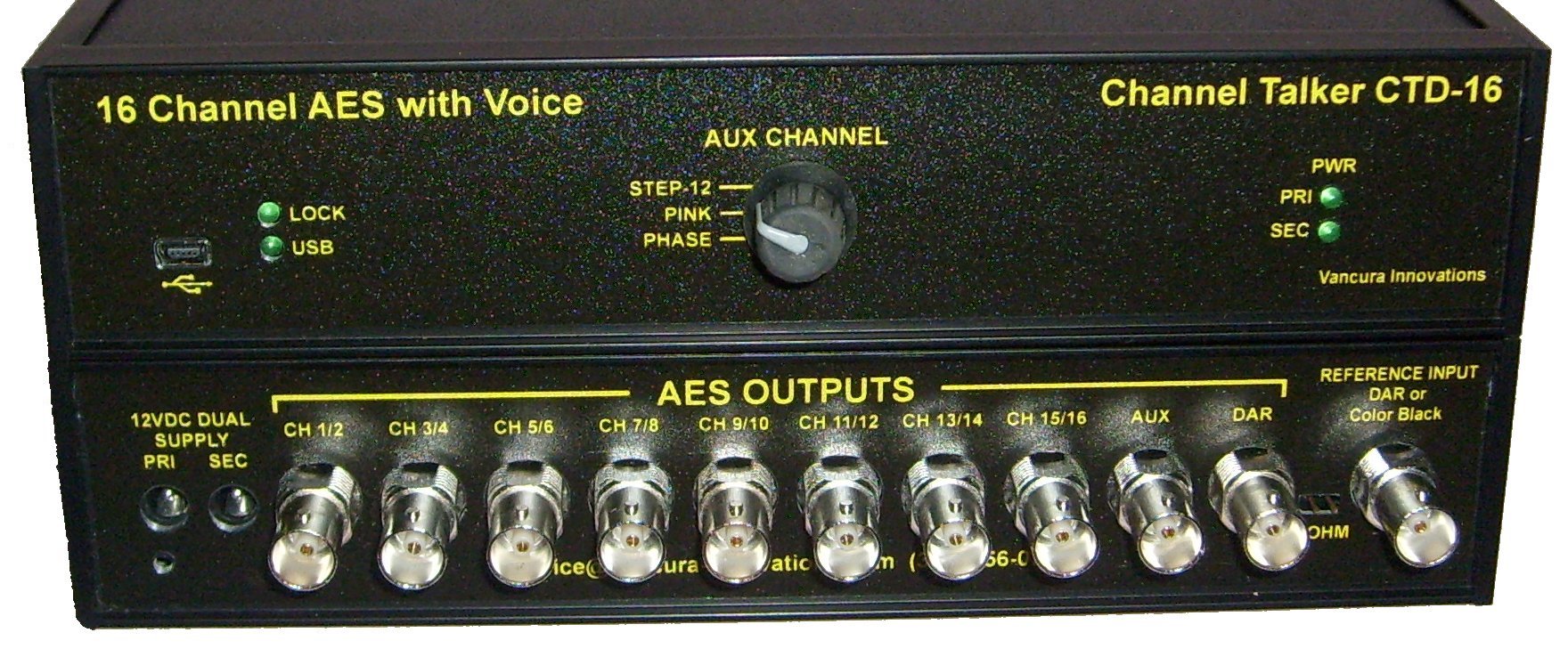

AES/EBU Stereo digital outputs: All digital serial outputs are greater than 1.0VP-P into 75 Ohms. BNC connectors. All tones and data streams are in phase.

Input Voltage: 8VDC to 14VDC (12VDC nominal). Connector 2.1mm X 5.5mm X 11mm (inside x outside x Length). Unit is compatible with automobile battery voltage (13.2VDC). Dual power input for redundant power operation.

Input Current: 500ma Maximum.

Input Power Supply: Two 110-220VAC to 9VDC @660ma green converters.

Temperature: 0 C to 50 C (32 F to 125 F) non-condensing.

Size W X D X H: 207mm x 178mm x 43mm (8.15in x 7.0in x 1.7in). 1U high 1/2 Rack compatible.

Warranty: 90 days to cover normal operation, defects in materials, and workmanship.

Voice ID Phrase Download Software (Optional): Channel Talker Voice overlay channel ID and Station ID  are wave files. The Channel ID file can be custom programmed, providing the overlay information can fit in either 0.5 sec or 1.0 sec segments. The Station ID file can be any message from 0 to 16 seconds. Voice ID information is downloaded to non-volatile FLASH memory. Both messages are stored at 8K samples/sec.

Voice ID Download Software Specifications: Software requires Windows XP,2000 or later 333 MHZ processor, 256MB RAM, 25M Bytes of Disk space, 800x600 monitor or larger, and mouse.

Model-C & D:  16 Channels with prerecorded voice overlay, 3 AUX tones. Channels 1-16 are 1000Hz with prerecorded voice overlay. Blank Station/unit ID. Comes with 4 AUX tones (Step-6 step-12, Pink, polarity);

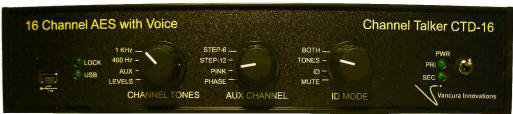

1) Channel Tone SW: Selectable tones on channels: 1000Hz, 500Hz, Aux Tones, or Levels: freq= 10 KHz @ (MUTE, -20, -17, -14, -11, -8, & -5 DBFS 2-seconds each).
2) MODE SW: Both Tones & ID, Tones Only, ID only, MUTE.
All channels have prerecorded  voice ID overlay.

Custom Model-x: Custom tones and configurations are possible. Please enquire at
Options: Optional Front Panel power Switch (Factory installation only).

Each Model includes: CTD-16, & 2 power supplies.
Rack Kit includes: Half Rack panel, mounting handles, and assembly hardware.

                         (Dealer inquiries welcome)

Shop On-line With PayPal
Item Name:

Item No.


Channel Talker (USA):
(Full Feature -20dBFS)*
CTD16-C $2600.00
Channel Talker (Euro):
(Full Feature -18dBFS)*
CTD16-D $2600.00
Rack Mounting Kit:
Half rack blank panel with Rack Mounting Hardware (ears)
HRMK-1U $100.00
Rack Mounting Hardware
Mounting ears only
RMH-1U $30.00
Optional Factory Programmed Custom Station Message CTD16-MSG $150.00
USB Cable A to mini USB:
5-pin 6Ft. (2 Meters)
USB to A-mini 5pin $9.95
Optional Front Panel Power Switch: (Factory installed only) CTD16 OPT-PWRSW $19.95

*Actual shipping and handling charges are based on method of shipping.

Download User Guide: CTD-16_User_Guide. (PDF 132KB)

Download USB Drivers: (603.5KB) Driver is available from

Download wave saver program: CT_WAVE_Saver_142E.msi  (11.3MB). This includes sample voice files at different levels. This program is required to save wav files to the the Channel Talker,

Download Side-by-side rack mount assembly guide: CT_side_by_side_assembly.pdf (PDF 51KB)

Note: Specifications subject to change without notice. The information in this document is believed to be accurate. Vancura Innovations assumes no responsibility for possible printing errors and omissions.
